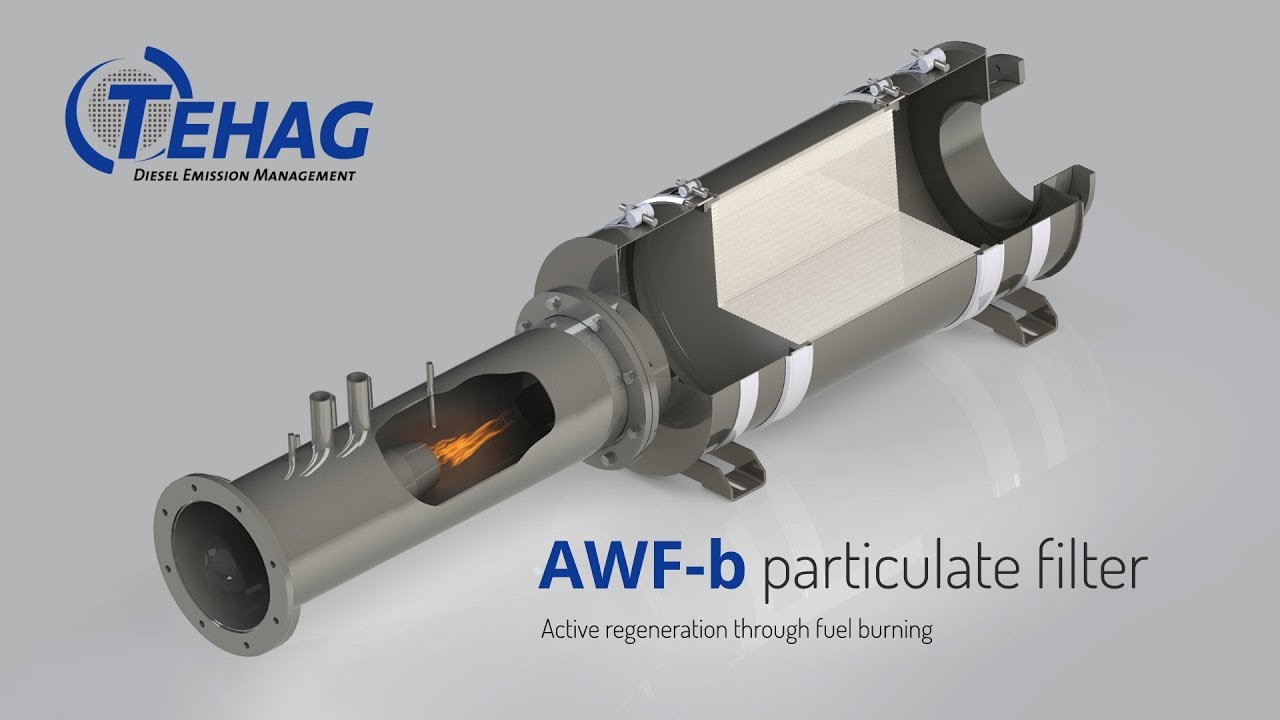

AWF-b Parti­cu­late Filter System

Active regeneration through fuel burning

AT A GLANCE

  • AWF-b+ full-flow burner system with fully automatic regeneration without driver in­ter­ven­tion
  • Active regeneration of your particulate fil­ter; regeneration independent of ma­chine or vehicle use upon request
  • No equipment downtime
  • Continuous particulate filtration of > 99 %
  • Certified system in accordance with LRV (BAFU) and VERT®; TRGS 554-compliant
  • Function monitoring via PTL filter ­mo­ni­to­ring and digital ­display in the cockpit
  • Freely programmable counterpressure value for triggering the burning process
  • Extremely economical thanks to low ad­di­tio­nal fuel consumption
  • No additional operating materials such as additives, etc.
PDF AWF-b Data Sheet

DOWNLOAD DATA SHEET

FUNCTION

The »Active Wall-Flow-burner« (AWF-b) Particulate Filter System is a technical system designed and manufactured by TEHAG for vehicles and in­dus­tri­al equip­ment that are only exposed to mini­mal loads or are required to idle for longer periods of time based on their areas of ap­pli­ca­tion, and therefore do not reach the minimum exhaust tem­pe­ra­ture re­quire­ments for passive regeneration of the filtered particles.



Depending on the area of application and customer preference, we can offer the AWF-b Particulate Filter System as an idle burner with manual start-up or in a full version as an automatic full-flow burner (AWF-b+).

FUNCTIONAL SCHEME

AWF-b Particulate filter functional scheme





1  AWF-b CPU
2  Air compressor
3  Air filter
4  Diesel pump
5  Diesel line

6  Monitor for tempera-
    ture/backpressure
7  Filtercontrol

8  Engine intake manifold

9  Engine

10  Exhaust line
11  Diesel particulate filter
12  Burning chamber
13  Glow plug
14  Air intake

15  Backpressure
16 Temperature 1

17 Temperature 2

18 Temperature 3

AREAS OF APPLICATION

TEHAG / Particulate filters and SCR systems for construction machinery

Construction machinery

TEHAG / Particulate filters and SCR systems for railway vehicles

Railway vehicles

TEHAG / Particulate filters and SCR systems for ships

Ships

TEHAG / Particulate filters and SCR systems for CHP plants

CHP plants

TEHAG / Particulate filters and SCR systems for generators and emergency power systems

Generators and emergency power systems

TEHAG / Particulate filters and SCR systems for lorries and buses

Lorries and buses

TEHAG / Particulate filters and SCR systems for industrial vehicles

Industrial vehicles

TEHAG / Particulate filters and SCR systems for agricultural vehicles

Agricultural vehicles

Design-element

MORE PARTICULATE FILTER SYSTEMS WITH ACTIVE REGENERATION

Alternately to the AWF-b exhaust after-treatment system, we can offer the AWF-h system with active regeneration through diesel injection or the AWF-e-System with active regeneration through external electrical supply.



Here you will find more information about the AWF-h system:


LEARN MORE

Here you will find more information about the AWF-e system


LEARN MORE
